Photos show the actual unit being offered.
Brother · Gtxpro-B

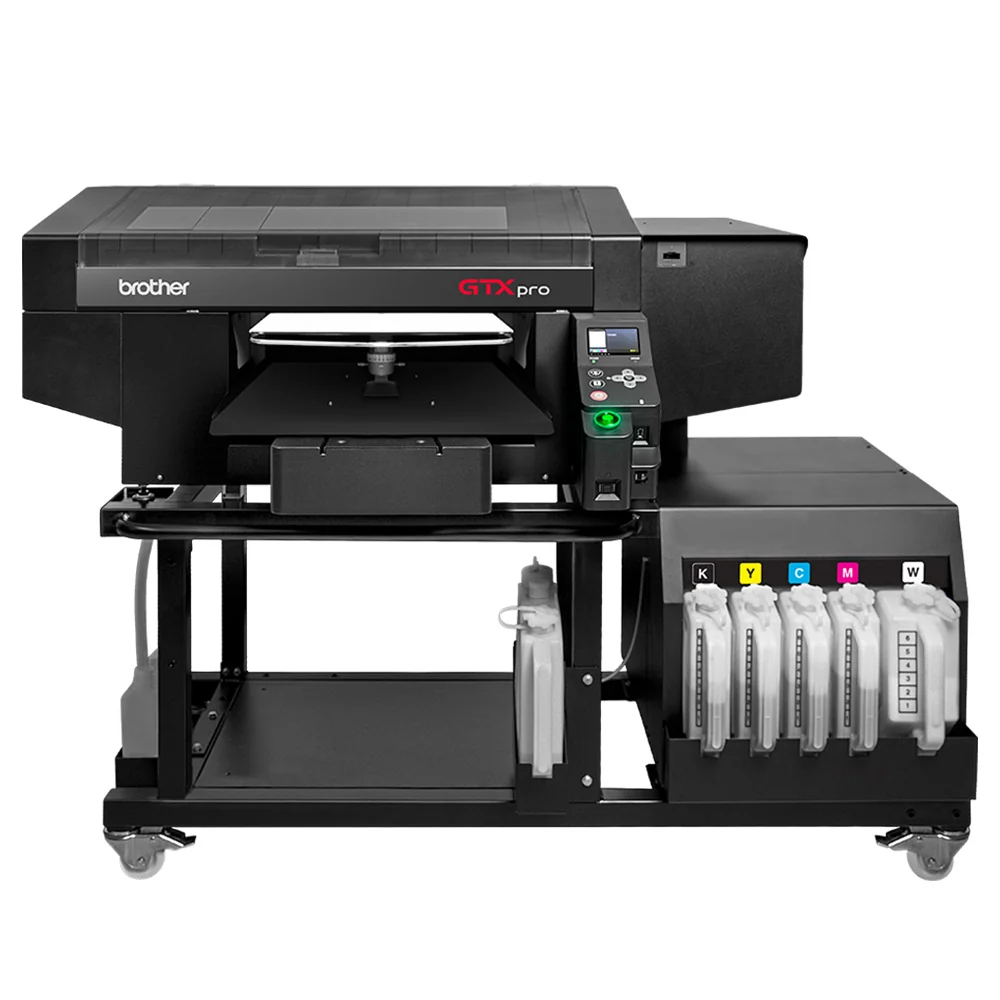

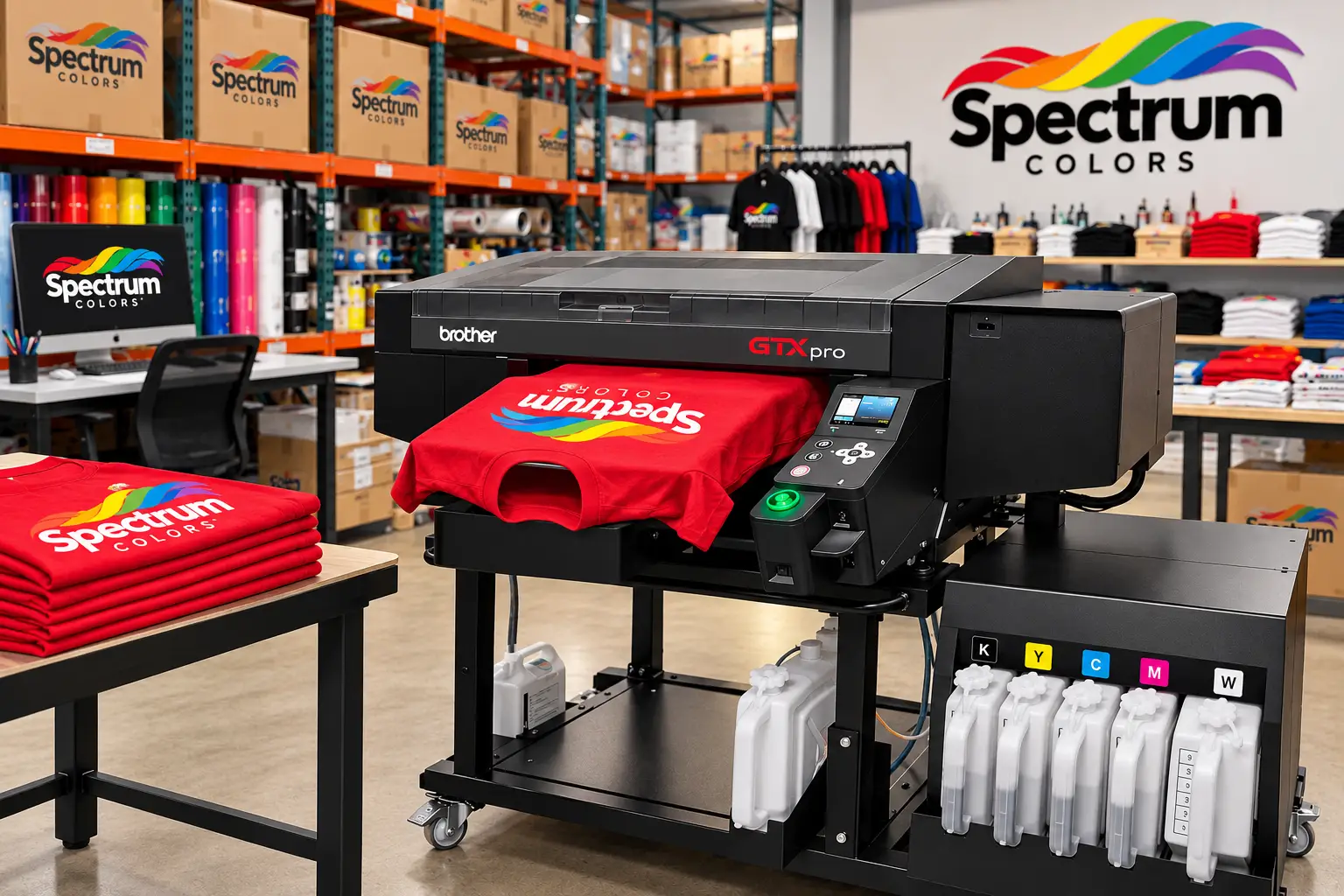

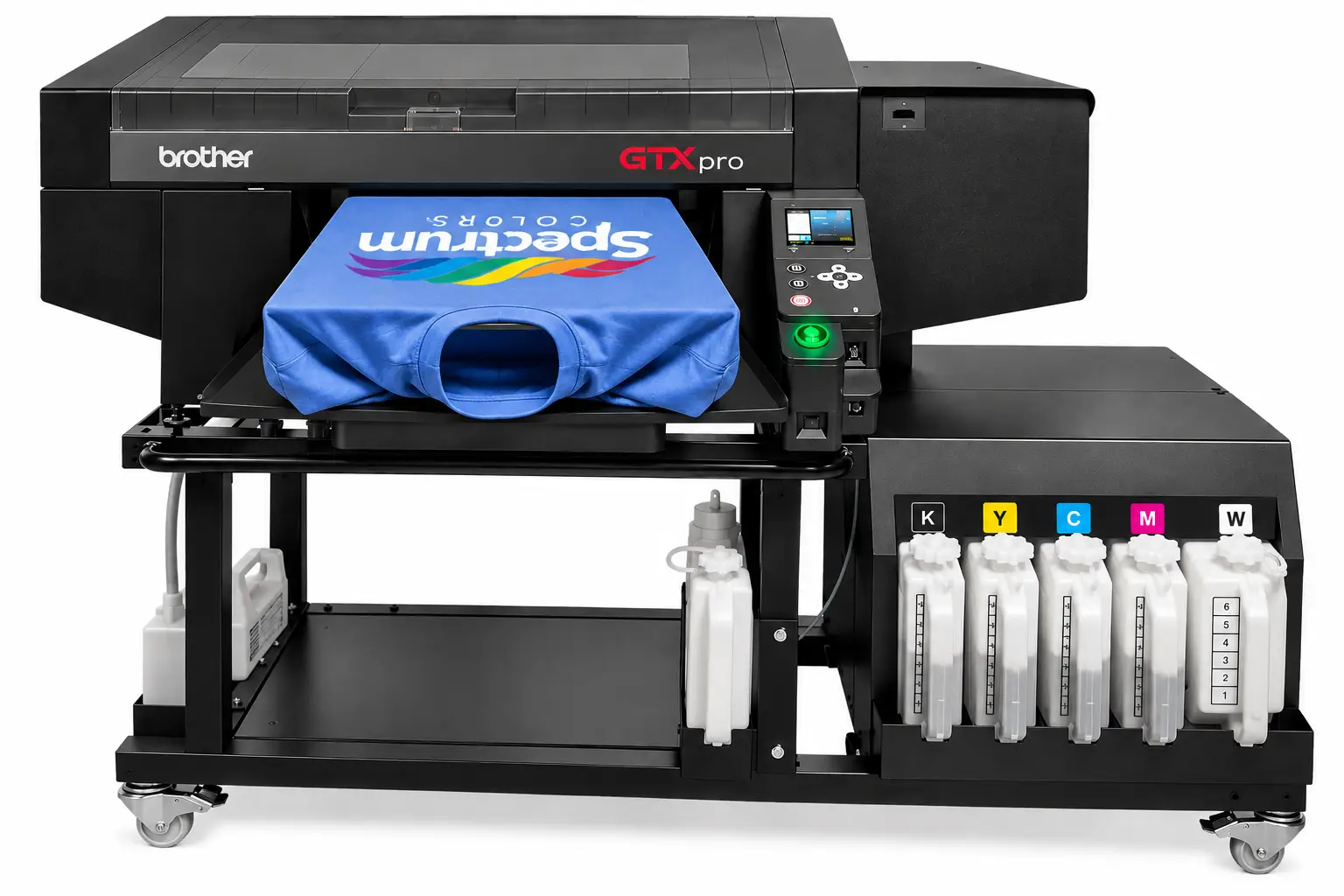

Brother GTX Pro B
- Price
- Price on request
- Year
- 2024
- Shipping
- Local pickup, or crated freight worldwide — quoted to your doorShipping to: UAE & Gulf, East Africa, South Asia, West Africa, Canada & USA
Spectrum Colors technical record
Our honest record of this individual unit. Anything we haven't verified yet is marked as such.
- Listing status
- Available now
- Actual-unit photos
- Yes — 3 photos
- Counter / usage
- Not yet documented
- Cosmetic condition
- Refurbished like New
- Functional test
- Fully Tested
- Nozzle / print test
- Tested
- Repairs performed
- Not yet documented
- Parts replaced
- Not yet documented
- Warranty
- 90 Days
About this model
The GTXpro B is built to help you run longer jobs and get more done with less downtime and fewer resources.
Why is it the right fit for a garment decorating business? Brother only makes industrial-grade garment printers, and we design and build our own print heads, software, and firmware. We've also added a proprietary bulk ink system that works with our specially formulated inks, which cuts down on maintenance and keeps you printing. Because we control every part of the system, we know each component can handle the daily demands of a busy shop. That's why the GTXpro B becomes the centre of your production and a solid way to grow your business.
The Advanced Ink System helps you save both ink and time. It's designed for high-volume shops that run multiple shifts, using an intelligent system that keeps large volumes of ink ready to print at a moment's notice.
Manufacturer specifications
Based on the manufacturer's information for this model — separate from the condition of this individual unit.
| Printing Method | Direct inkjet garment printer |
|---|---|
| Machine Size | 70”(W) x 51”(D) x 48”(H) (1780mm x 1300mm x 1210mm) With recommended stand |
| Machine Weight | Approx. 364 lbs. (165kg) including platen (not including stand) |
| Included Platen Size | 14” x 16” (35,6cm x 40,6cm) |
| Ink Delivery | Advanced Ink System |
| Ink Type | Water-based pigment ink |
| Number of Print Heads | 2 Print heads: 1 for White Inks, 1 for CMYK Inks |
| Print Resolution | 1200 dpi x 1200 dpi |
| Print Mode | Single or double for CMYK. Underbase and highlight for white. |
| Data output | USB, File Output, LAN |
| Power supply | AC 100V-240V, 50/60Hz ± 1Hz |
| Power consumption | 0.8A(average) (Reference: 0.4A – during circulation) |
| Ink cure | Heat press machine can be used at 356°F (180°C) and 35 seconds duration. For higher volume production, a conveyor oven is recommended to be used at 320° (160°) for three and a half minutes. Time and temperature may vary depending on which manufacturer's dryer is used. |
| Pre-treatment | Before printing, apply pre-treatment using either a manual or automatic device and then dry garment using a heat-press, being sure to follow all manufacturer's instructions. Pre-treatment is necessary for white ink. |
Request a quote
Ask about price, condition, configuration or freight for the Brother GTX Pro B. Include your country and city so we can quote delivery.
- No obligation
- Freight and export quoted to your door
- Installation and training available
